3-ton Mini-digger
✅Powerhouse Engine: Features the YANMAR 3TNV88, delivering 20.2 kW at 2200 rpm and 82.6 N·m of torque for demanding excavation and lifting tasks.
✅High-Performance Hydraulics: An advanced system providing 88 L/min flow and 24.5 MPa working pressure enables fast, precise operation.
✅Extended Reach & Depth: Capable of a 4.86 m dig height, 3.11 m depth, and 5.47 m horizontal reach for versatile applications.
✅Exceptional Digging Power: Tackles tough materials effortlessly with 30.4 kN bucket force and 18.2 kN arm force.

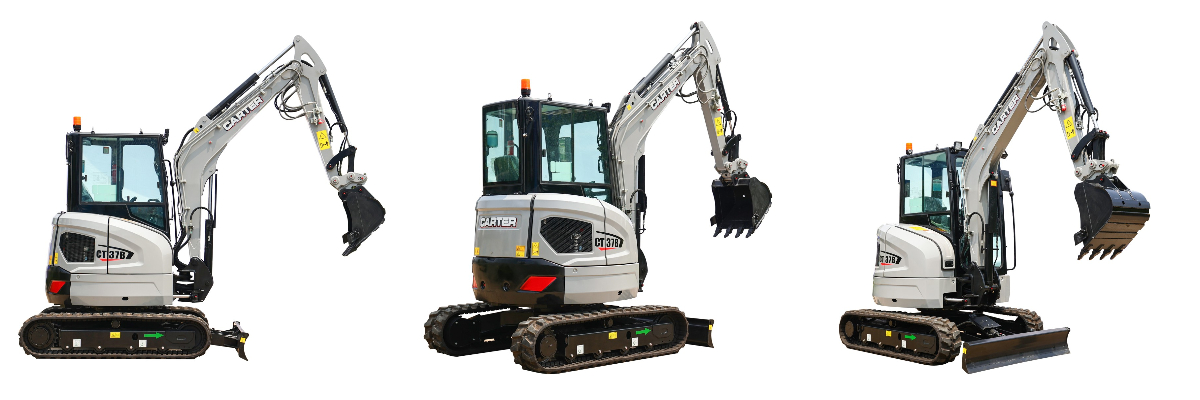

CT37B4 Mini Excavator Introduction:
CT37B4 Mini Excavator: This 3.75-ton powerhouse provides heavy-duty performance in cramped areas and was designed for demanding contractors. Its updated YANMAR 3TNV88 engine (20.2 kW, 82.6 N·m torque) offers 10% more power for faster lifting and digging. Operations are smooth and accurate when combined with high-efficiency hydraulics (88 L/min @ 24.5 MPa).
With a maximum dig height of 4.86 meters, a digging depth of 3.11 meters, and a horizontal reach of 5.47 meters, you may do a variety of chores with remarkable reach. Its incredibly small size (1.72 m wide, 860 mm tail swing) allows it to maneuver through confined urban areas with ease, and its low ground pressure (32.0 kPa) protects sensitive surfaces.
Dual-speed travel (2.2/4.2 km/h), a sturdy undercarriage (58% gradeability), and an integrated dozer blade (300 mm height) all contribute to increased versatility. The CT37B4 is the perfect combination of raw power, accuracy, and space efficiency, and it shines in construction, utilities, and landscaping.
CT37B4 Mini Excavator Specifications:
| Model | CT37BH | Model | CT37BH |
| Operating weight | 3.75 | G-Tail swing radius (mm) | 860.0 |
| Bucket capacity | 0.12 | H-Track ground length(mm) | 1710 |
| Engine model | YANMAR 3TNV88F | J-Track length (mm) | 2160.0 |
| Rated power (kw/r/min) | 18.2/2200 | K-Track gauge (mm) | 1420 |
| Maximum torque （N*m） | 82.6/1320 | L-Track width (mm) | 1710.0 |
| Engine displacement（L） | 1.642 | M-Track shoe width (mm) | 300 |
| Max.flow (L/min) | 88 | N-Turntable width (mm) | 1550.0 |
| Working pressure (Mpa) | 24.5 | O-Max. digging height (mm) | 4855 |
| Fuel tank capacity (L) | 50 | P-Max. dumping height (mm) | 3460.0 |
| Hydraulic oil tank capacity (L) | 40 | Q-Max. digging depth (mm) | 3105 |
| Travel speed (km/h) | 2.2/4.2 | R-Max. vertical wall digging depth (mm) | 2700.0 |
| Swing speed (r/min) | 9.5 | T-Max. digging reach (mm) | 5465 |
| Max. climbing degree (%) | 58 | U-Max. digging reach at ground level (mm) | 5350.0 |
| Arm digging force | 18.2 | V-Min. swing radius (mm) | 2475 |
| Bucket digging force (KN) | 30.4 | X-Distance between center of rotation and tail length (mm) | 860.0 |
| Average grounding pressure (Kpa) | 32.0 | Z-Height of counterweight (mm) | / |
| A-Overall length (mm) | 4920.0 | A1-Ground length (in transportion)(mm) | 4920 |
| B-Overall width (mm) | 1720 | Arm length (mm) | 1400/1650 |
| C-Overall height (to top of boom)(mm) | 1800.0 | Boom length (mm) | 2540 |
| D-Overall height (to top of cab)(mm) | 2550/2520 | Deflection angle left°/right° | 63/57 |
| E-Counterweight ground clearance(mm) | 580.0 | Maximum dozing height/depth (mm) | 375/370 |
| F-Min. ground clearance (mm) | 295 | Dozer size width/height（mm） | 300/1720 |
Mini Excavator Package&shipment:
Global Logistics Expertise: Our dedicated team ensures rapid, secure worldwide delivery of mini excavators. Flexible transport options include standard containers, breakbulk shipping, and rail transport.
Why Choose Us:
As a manufacturer, Carter not only delivers premium, high-performance products at competitive prices but also guarantees timely delivery and provides 24/7 after-sales support.
Company Profile:
As a key member of Huasheng Zhongtian Machinery Group (established in 2004), Shandong Carter Heavy Industry uses the technical inheritance from 1951 to lead the development of China's excavator industry.
