Hot-selling 6 Ton Compactable Small Excavator
✅Optimized Engine Power: Features the YANMAR 4TNV94 engine delivering 36.2 kW (48.5 hp) @ 2100 rpm and 194.5 N·m max torque for fuel-efficient, high-output performance.
✅High-Performance Hydraulics: Provides 142.8 L/min max flow and 24 MPa working pressure for rapid cycle times and precise control.
✅Extended Reach & Depth: Offers 5.89 m max digging height, 3.81 m digging depth, and 6.26 m max reach for large-scale excavation and material handling.
✅Powerful Digging Force: Delivers 45 kN bucket force and 31 kN arm force to tackle rock, compacted soil, and tough terrain effortlessly.
✅Rugged Mobility: Enables 70% climbing grade, 400 mm track shoes, and 36 kPa ground pressure for stability on slopes and uneven terrain.
✅Compact Agility: Features a 1.75 m tail swing radius and 2.0 m width for easy maneuvering in confined urban or industrial sites.
CT60-9B3 Excavator Introduction:

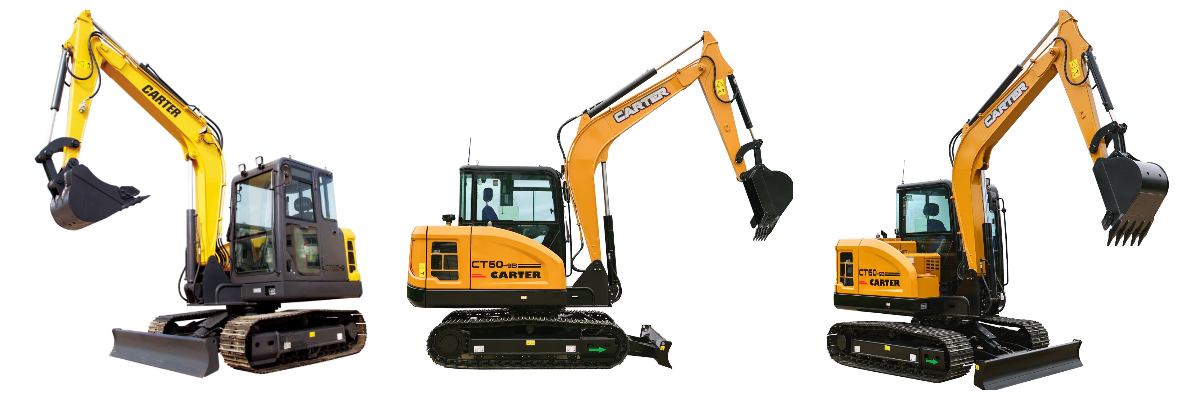

Meet the CT60-9B3 Small Excavator: Where heavy-duty capability meets compact agility. Weighing 5.82 tons and equipped with a standard 0.22 m³ bucket, it's engineered to excel in construction, quarrying, and demanding industrial applications.
Power & Precision: The fuel-efficient YANMAR 4TNV94 engine (36.2 kW, 194.5 N·m torque) delivers reliable power for excavation, demolition, and material handling. A high-performance hydraulic system (142.8 L/min flow, 24 MPa pressure) ensures rapid cycle times and precise control.
Impressive Reach: Tackle deep trenches with a 3.81 m digging depth, reach heights up to 5.89 m, and extend to 6.26 m for large-scale project versatility.
Rugged Mobility & Stability: Its reinforced undercarriage features 400 mm track shoes and a 70% climbing grade, while 36 kPa ground pressure ensures stability on slopes and uneven ground. A compact 1.75 m tail swing radius maintains agility in confined urban or industrial spaces.
Versatile Performance: Dual-speed travel (2.4/3.9 km/h) and an integrated dozer blade (335 mm height) let you effortlessly switch between grading, backfilling, and excavation tasks.

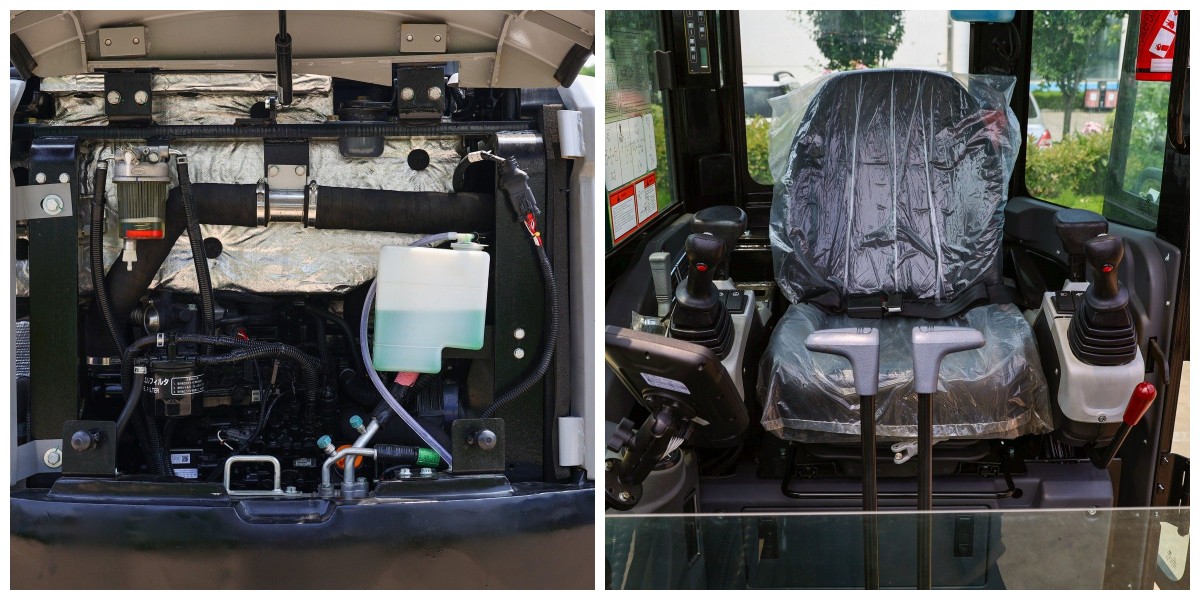

Operator Focus: The ROPS/FOPS-certified cab prioritizes comfort with ergonomic controls and panoramic visibility.
For contractors demanding power, precision, and adaptability in a compact machine, the CT60-9B3 is the ultimate high-efficiency solution.
| Model | CT60-9B3 | Model | CT60-9B3 |
| Operating weight | 5.82 | G-Tail swing radius (mm) | 1745 |
| Bucket capacity | 0.22 | H-Track ground length(mm) | 2000 |
| Engine model | YANMAR 4TNV94 | J-Track length (mm) | 2665 |
| Rated power (kw/r/min) | 36.2/2100 | K-Track gauge (mm) | 1600 |
| Maximum torque （N*m） | 194.5/1260 | L-Track width (mm) | 2000 |
| Engine displacement（L） | 3.054 | M-Track shoe width (mm) | 400 |
| Max.flow (L/min) | 142.8 | N-Turntable width (mm) | 1790 |
| Working pressure (Mpa) | 24 | O-Max. digging height (mm) | 5889 |
| Fuel tank capacity (L) | 125 | P-Max. dumping height (mm) | 4150 |
| Hydraulic oil tank capacity (L) | 110 | Q-Max. digging depth (mm) | 3812 |
| Travel speed (km/h) | 2.4/3.9 | R-Max. vertical wall digging depth (mm) | 3008 |
| Swing speed (r/min) | 11.5 | T-Max. digging reach (mm) | 6257 |
| Max. climbing degree (%) | 70 | U-Max. digging reach at ground level (mm) | 6102 |
| Arm digging force | 31 | V-Min. swing radius (mm) | 2585 |
| Bucket digging force (KN) | 45 | X-Distance between center of rotation and tail length (mm) | 1745 |
| Average grounding pressure (Kpa) | 36 | Z-Height of counterweight (mm) | 1062 |
| A-Overall length (mm) | 5943 | A1-Ground length (in transportion)(mm) | 3375 |
| B-Overall width (mm) | 2000 | Arm length (mm) | 1580 |
| C-Overall height (to top of boom)(mm) | 1995 | Boom length (mm) | 3050 |
| D-Overall height (to top of cab)(mm) | 2619 | Deflection angle left°/right° | 53/46 |
| E-Counterweight ground clearance(mm) | 740 | Maximum dozing height/depth (mm) | 335/535 |
| F-Min. ground clearance (mm) | 360 | Dozer size width/height（mm） | 330/1992 |
Mini Excavator Package&shipment:
Relying on our experienced loading and logistics team, we provide efficient and secure global transportation services for mini excavators, with available transport methods including standard containers, bulk cargo, and rail transport.
Why Choose Us:
Being a manufacturer, Carter pledges not just superior-quality, high-performance items at affordable prices but also ensures prompt delivery and around-the-clock post-sales support.
Company Profile:
Shandong Carter Heavy Industry, joining Huasheng Zhongtian Machinery Group in 2004, has technical origins in 1951 and serves as a trailblazer in China's excavator sector.
