1 Ton Flexible Mini Skid Steer Loader
🗝️Key Features：
✅ Compact Design: Only 1.05m wide and 1.3m tall for easy access to tight spaces
✅ Powerful Engine: 24 hp Yanmar diesel engine, fuel-efficient with high performance
✅Flexible Operation: Stand-on design offers excellent visibility and freedom of movement
✅ Low Ground Pressure: Just 0.312 bar to protect sensitive surfaces
✅ Versatile Hydraulics: 48 L/min auxiliary flow enables fast attachment changes
The ST1000 mini skid steer loader is a compact yet powerful solution designed for high performance in confined spaces. With a width of just 1.05 meters and a height of 1.3 meters, this compact loader offers exceptional maneuverability without compromising on capability. Powered by a robust Yanmar 3TNV80F 3-cylinder diesel engine delivering 17.8 kW, the ST1000 skid steer ensures fuel efficiency and reliable operation under demanding conditions.
The mini skid steer’s innovative design allows a maximum operating height of 2.7 meters and a tipping capacity of 1,015 kg, supported by an impressive operating capacity of 1,250 kg. The skid steer’s low ground pressure of 0.35 bar minimizes surface damage, making the machine ideal for sensitive environments. Equipped with a high-flow hydraulic system offering 48 L/min at 180 bar, the ST1000 loader enables quick and easy attachment changes, enhancing the equipment's versatility across various tasks from loading to digging.
| Model | ST1000 | Model | ST1000 | |
| Height to Bucket Hinge Pin, max | 1.93 m | Engine | Yanmar 3TNV80F | |
| Operating Height, max std.bucket | 2.7 m | Number of cylinders | 3 | |
| Height | 1.3 m | Displacement | 1.266 L | |
| Length without Attachment | 1.8 m | Bore | 80 mm | |
| Length with Standard Bucket | 2.5 mm | Stroke | 84 mm | |
| Ground Clearance | 145 mm | Gross power rating (per SAE J1955) | 17.8 kW | |
| Ground Contact Length | 960 mm | Rated engine speed | 3000 rpm | |
| Width | 1050 mm | Fuel tank | 34 L | |
| Ground drive speed, forward and reverse | 5.25 km/h | Engine oil, with filter | 3 L | |
| Ground pressure, 8 in (200 mm) tracks * | 0.35 bar | Hydraulic System | 45 L | |
| Angle of Departure | 22° | |||
| Tipping capacity | 1015 kg | |||
| Operating capacity (35% of tipping capacity) | 355kg | |||
| Machine weight (no attachment, fluids full) | 1250 kg | |||
| Auxiliary Hydraulic Pressure | 180 Bar |
Why Choose Us:
Carter, as a manufacturer, guarantees not just first-class, high-performance products at competitive prices but also the certainty of on-time delivery and round-the-clock after-sales support for all customers.

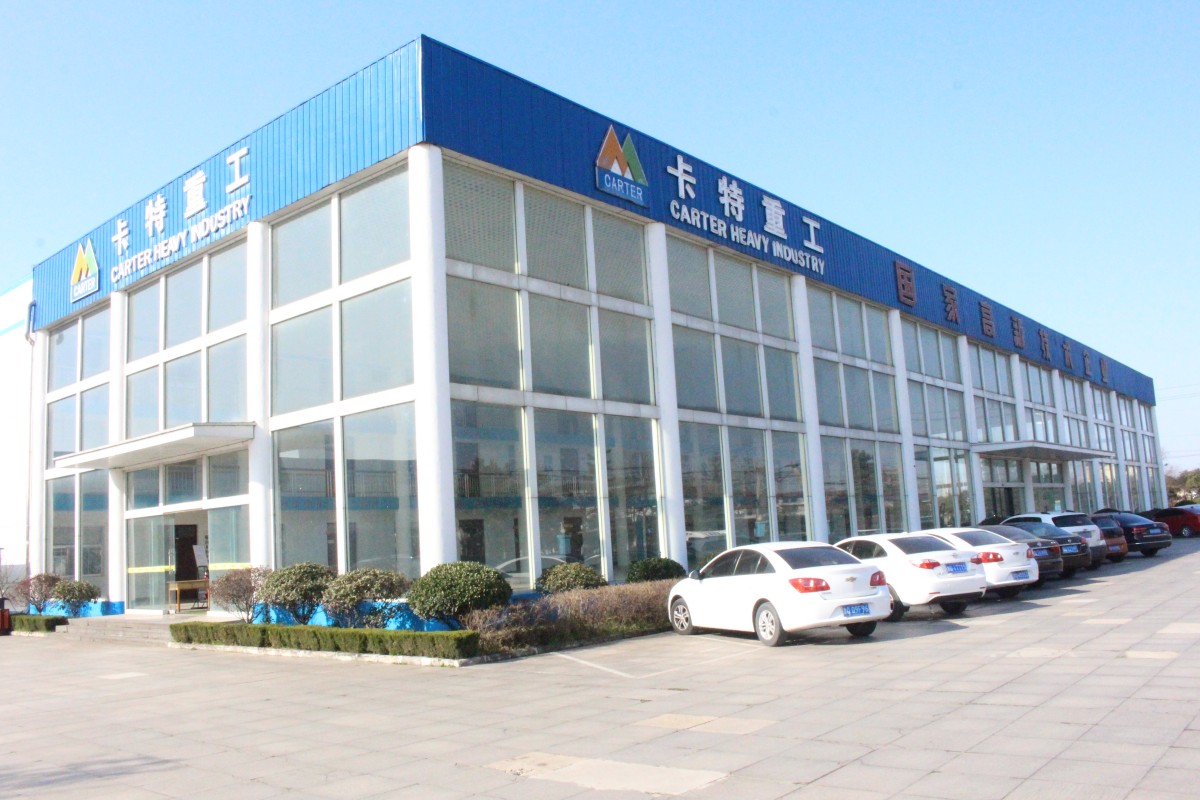

Company Profile:
