20 Ton Construction Excavator
Uncompromising Power:
✅Cummins 6BTA.A5.9 Engine: 133 kW (178 HP) @ 2000 RPM provides reliable, high torque output (708.2 N·m @ 1500 RPM) for tough digging and lifting.
✅Impressive Digging Force: Arm Force: 110 kN | Bucket Force: 139 kN – tackles hard soil and rock with ease.
✅5.9L Engine Displacement: Optimizes power delivery and fuel efficiency.
Superior Hydraulic Performance:
✅High-Flow Dual Pump System: 230 L/min x 2 (Total 460 L/min) ensures fast, smooth, and powerful simultaneous operations.
✅High Working Pressure: 31.4/34.3 MPa system delivers strong breakout force and efficient attachment operation.
Excavator Introduction:
The CT230-8A (KPM) redefines mid-size excavation efficiency and is designed to perform exceptionally well in the most demanding construction, landscaping, and utility activities. This 22.1-ton class champion's 110kN arm power guarantees consistent performance in trenching and lifting applications, while its industry-leading 139kN bucket digging force efficiently fractures rock and penetrates deep soil.
The well-proven Cummins 6BTA.A5.9 turbocharged engine, which produces 133kW (178HP) and a tremendous 708N·m torque plateau at low RPM, is at the heart of this excavator. This machine performs intricate motions with lightning responsiveness and hydraulic precision thanks to a dual-pump hydraulic system that delivers 460L/min total flow.
Model | CT230-8A（KPM） | Model | CT230-8A（KPM） |
Operating weight | 22.1 | G-Tail swing radius (mm) | 2850 |
Bucket capacity | 1.1 | H-Track ground length(mm) | 3480 |
Engine model | Cummins | J-Track length (mm) | 4174 |
Rated power (kw/r/min) | 133/2000 | K-Track gauge (mm) | 2210 |
Maximum torque （N*m） | 708.2/1500 | L-Track width (mm) | 2810 |
Engine displacement（L） | 5.9 | M-Track shoe width (mm) | 600 |
Max.flow (L/min) | 230*2 | N-Turntable width (mm) | 2736 |
Working pressure (Mpa) | 31.4/34.3 | O-Max. digging height (mm) | 9970 |
Fuel tank capacity (L) | 360 | P-Max. dumping height (mm) | 7000 |
Hydraulic oil tank capacity (L) | 295 | Q-Max. digging depth (mm) | 6622 |
Travel speed (km/h) | 3.0/4.7 | R-Max. vertical wall digging depth (mm) | 5900 |
Swing speed (r/min) | 11.5 | T-Max. digging reach (mm) | 9982 |
Max. climbing degree (%) | 70 | U-Max. digging reach at ground level (mm) | 9975 |
Arm digging force | 110 | V-Min. swing radius (mm) | 3203 |
Bucket digging force (KN) | 139 | X-Distance between center of rotation and tail length (mm) | 2850 |
Average grounding pressure (Kpa) | 47 | Z-Height of counterweight (mm) | 1075 |
A-Overall length (mm) | 9650 | A1-Ground length (in transportion)(mm) | 4780 |
B-Overall width (mm) | 2810 | Arm length (mm) | 2925 |
C-Overall height (to top of boom)(mm) | 3050 | Boom length (mm) | 5700 |
D-Overall height (to top of cab)(mm) | 3007 | Deflection angle left°/right° | - |
E-Counterweight ground clearance(mm) | 1075 | Maximum dozing height/depth (mm) | - |
F-Min. ground clearance (mm) | 465 | Dozer size width/height（mm） | - |

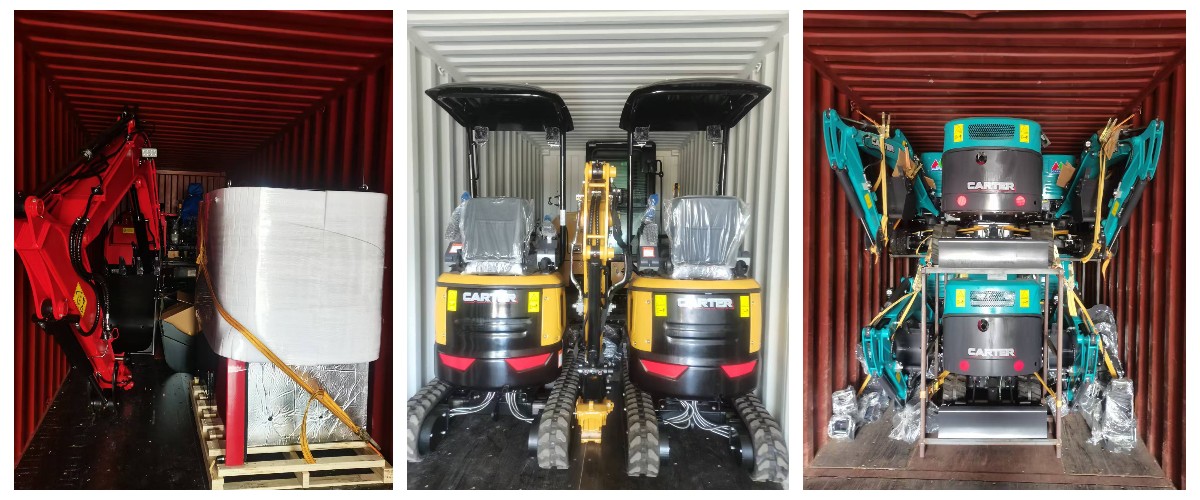

Package&shipment:
Global Delivery Guaranteed: Our dedicated logistics team delivers mini excavators worldwide with speed and precision, offering tailored transport solutions – container, bulk, or rail.
Why Choose Us:As your industrial equipment partner, we provide high-performance excavators at competitive prices, guarantee precise delivery timelines, and deliver 24/7 after-sales technical support.
Company Profile:
Shandong Carter Heavy Industry (founded in 2004) traces its technical lineage back to 1951, pioneering China's excavator sector as a member of the Huasheng Zhongtian Machinery Group.
