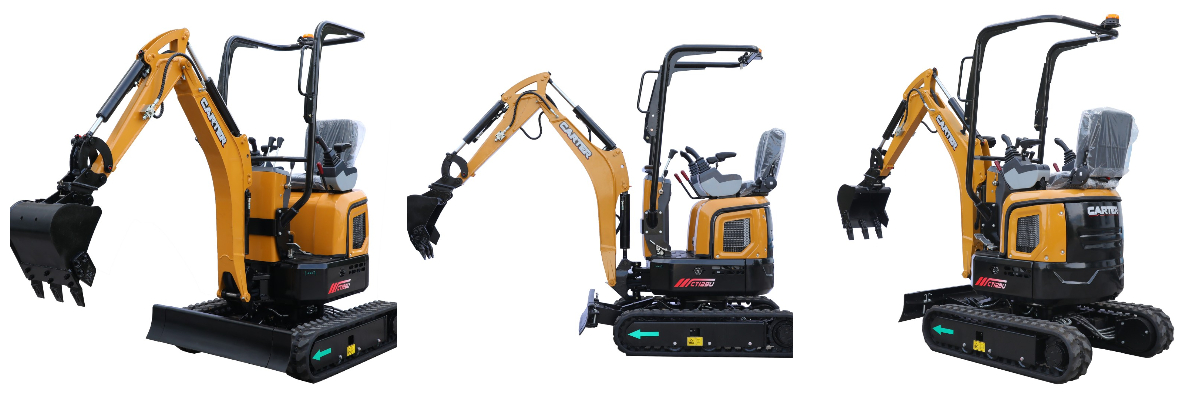

1 Ton Flexible Track Mini Digger
CT12B4U/BU Mini Excavator Product Description：
✅Ultra-Compact & Agile：Measuring 3,070 mm L × 850 mm W and weighing just 1.2 tons, it’s ideal for tight spaces. Perfect for urban construction, agriculture, and indoor projects.
✅Dual-Engine Flexibility：Choose between YANMAR 3TNV74F (11.2 kW) and 3TNV70 (10.3 kW) engines for optimal power and fuel efficiency.
✅Zero Tail Swing Design：With a 550 mm tail radius, operate safely near walls and obstacles.
✅Advanced Hydraulics：17 MPa pressure and 19.2 L/min flow enable fast, precise digging and lifting.
Product Details:
The CT12B4U/BU Mini Excavator revolutionizes compact-space operations with the mini excavator’s lightweight, durable design, perfectly suited for urban construction, agriculture, and tight job sites. Boasting dual-engine choices of YANMAR 3TNV74F or 3TNV70, the mini excavator offers customized power and optimal fuel efficiency for any task.
The mini excavator’s zero tail swing design, with a mere 550 mm radius, guarantees safe operation around obstacles. Coupled with an advanced hydraulic system delivering 17 MPa pressure and up to 19.2 L/min flow, the mini excavator enables swift and precise digging and lifting. With a formidable 10 kN bucket force, the mini excavator effortlessly handles deep excavations reaching 1,830 mm, high-reach tasks up to 3,062 mm, and vertical wall challenges.
The adjustable track width of the mini excavator, ranging from 850–1,100 mm, along with 31 kPa ground pressure, allows the mini excavator to perform exceptionally well on slopes and delicate terrains. Engineered for longevity and operator comfort, the mini excavator’s ergonomic cab and reinforced undercarriage make the mini excavator a versatile choice for landscaping, utility work, snow removal, and more. This mini excavator packs agility, power, and reliability into one compact yet mighty machine.
| Model | CT12B4U/BU | Model | CT12B4U/BU |
| Operating weight | 1.2 | G-Tail swing radius (mm) | 550 |
| Bucket capacity | 0.03 | H-Track ground length(mm) | 1080 |
| Engine model | YANMAR 3TNV74F YANMAR 3TNV70 | J-Track length (mm) | 1404 |
| Rated power (kw/r/min) | 11.2/2400 10.3/2200 | K-Track gauge (mm) | 670（920） |
| Maximum torque （N*m） | 47.6/1600 48.5/1800 | L-Track width (mm) | 850-1100 |
| Engine displacement（L） | 0.854 0.993 | M-Track shoe width (mm) | 180 |
| Max.flow (L/min) | 17.6/19.2 | N-Turntable width (mm) | 850 |
| Working pressure (Mpa) | 17 | O-Max. digging height (mm) | 3062 |
| Fuel tank capacity (L) | 13 | P-Max. dumping height (mm) | 2075 |
| Hydraulic oil tank capacity (L) | 13 | Q-Max. digging depth (mm) | 1830 |
| Travel speed (km/h) | 1.3/2.5 | R-Max. vertical wall digging depth (mm) | 1613 |
| Swing speed (r/min) | 10 | T-Max. digging reach (mm) | 3542 |
| Max. climbing degree (%) | 58 | U-Max. digging reach at ground level (mm) | 3493 |
| Arm digging force | 6 | V-Min. swing radius (mm) | 1560 |
| Bucket digging force (KN) | 10 | X-Distance between center of rotation and tail length (mm) | 550 |
| Average grounding pressure (Kpa) | 31 | Z-Height of counterweight (mm) | 650 |
| A-Overall length (mm) | 3070 | A1-Ground length (in transportion)(mm) | 1663 |
| B-Overall width (mm) | 850/1100 | Arm length (mm) | 890 |
| C-Overall height (to top of boom)(mm) | 1168 | Boom length (mm) | 1500 |
| D-Overall height (to top of cab)(mm) | 2323 | Deflection angle left°/right° | 50°/70° |
| E-Counterweight ground clearance(mm) | 425 | Maximum dozing height/depth (mm) | 168/275 |
| F-Min. ground clearance (mm) | 130 | Dozer size width/height（mm） | 226/850(1100) |
Mini Excavator Package&shipment:
Our proficient loading and logistics staff ensure the timely and safe global delivery of mini excavators, offering diverse transport solutions such as standard container, bulk, and rail transport services.
Why Choose Us:
As a manufacturer, Carter promises to offer not just top-quality, high-performance products at affordable prices but also to ensure that delivery is timely and after-sales support is available 24 hours a day.
Company Profile:
Founded on technical expertise dating to 1951, Shandong Carter Heavy Industry became part of Huasheng Zhongtian Machinery Group in 2004. This legacy establishes it among China's earliest excavator industry pioneers.
